LFH10-1L
Heavy Duty LARGE Wall to glass hinges with L type mounting plate
PLEASE NOTE: Brushed/polished brass is an "organic" finish that will age & darken over time. Returns will not be accepted after installation if this ageing process is the reason for the return.
Item Details
Manufacturer: Estelle
Description: Heavy Duty - LARGE - Wall to glass hinges with L type mounting plate
Load Rating: 50kg per pair. Max glass width not to exceed 900mm
Material: Estelle specified forged Brass
Glass Suitability: 10mm thickness, toughened safety glass
Features
- Non-slip POWERGRAB asbestos free packers
- Fast fit slip on design
- Self Closing from approximately 25 degrees
- Dual action opens inwards and outwards
- Fixing screws, wall plugs, Allan tools and masonry drill bit supplied
- Guaranteed for life
Fitting Instructions
- Before attempting installation ensure the wall is strong enough to hold the required weight
- Before attaching the hinge clean both sides of the glass with Methylated spirits at contact points

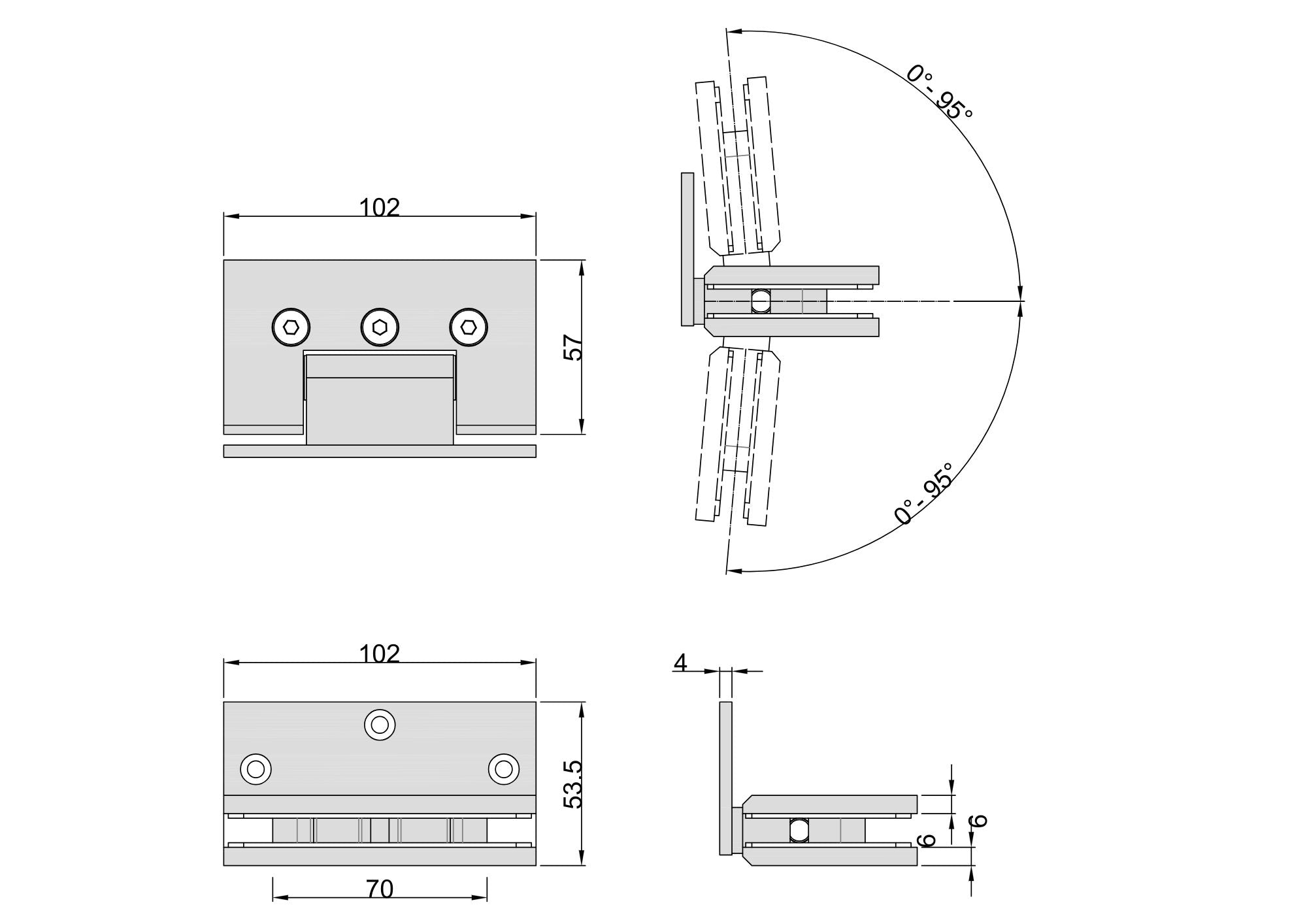

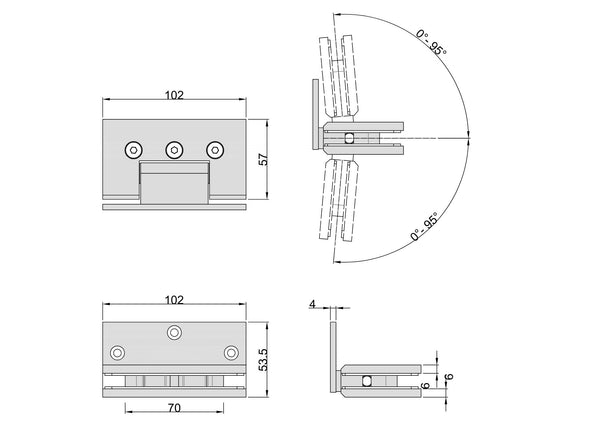

TECHNICAL DATA
For a family of 4 having a shower every day, that's over 68 years.
Guaranteed.
For a family of 4 having a shower every day, that's over 68 years.
Guaranteed.
Unsure which series suits you best?
Refer to our comparison chart to see the differences between the series Estelle offers.
