FH6-1C

FH6-1C

SKU: FH6-1C PC
Sale price$62.16 Regular price$69.07
Save $6.91
Colour: Polished Chrome

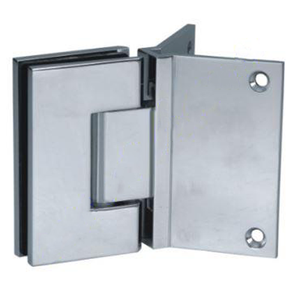

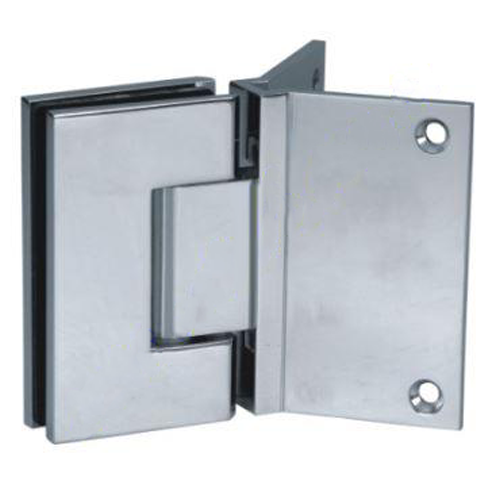

Wall to glass hinges with CORNER type mounting plate

Item Details

Manufacturer: Estelle
Description: Wall to glass hinges with corner type mounting plate
Material: Estelle specified forged Brass
Load Rating: 28kg per pair. Max glass width not to exceed 700mm
Glass Suitability: 6mm and 8mm thickness, toughened safety glass

Features
  • Non-slip POWERGRAB asbestos free packers
  • Fast fit slip on design
  • Self Closing from approximately 25 degrees
  • Dual action opens inwards and outwards
  • Fixing screws, wall plugs, Allan tools supplied
  • Guaranteed for life
Fitting Instructions
  • Before attempting installation ensure the wall is strong enough to hold the required weight
  • Before attaching the hinge clean both sides of the glass with Methylated spirits at contact points

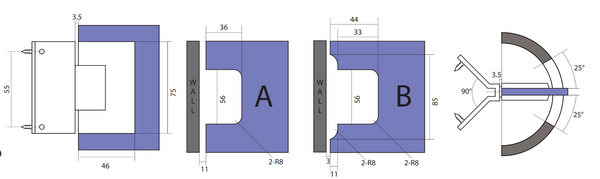

TECHNICAL DATA

Tested for over 200,000 cycles

For a family of 4 having a shower every day, that's over 68 years.

Guaranteed.

Tested for over 200,000 cycles

For a family of 4 having a shower every day, that's over 68 years.

Guaranteed.
