FH10-5L

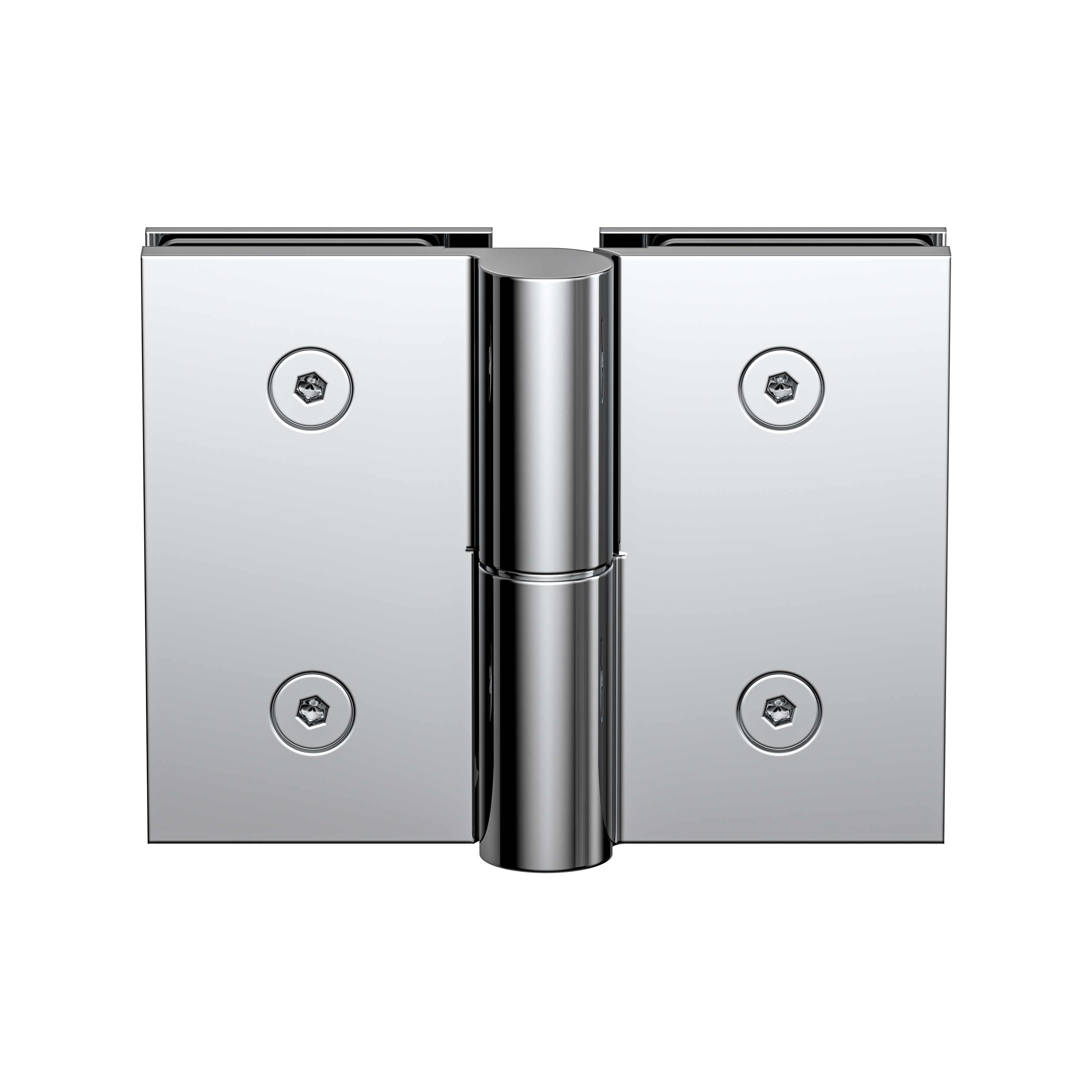

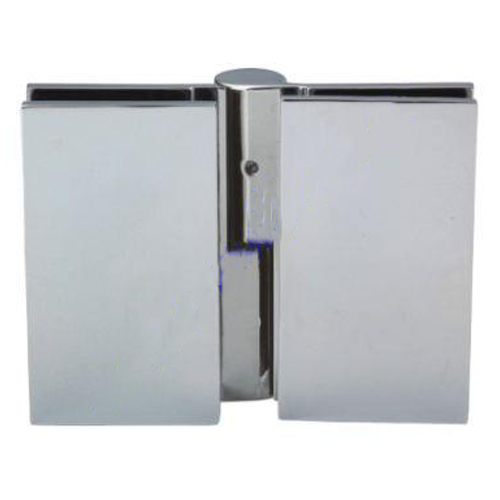

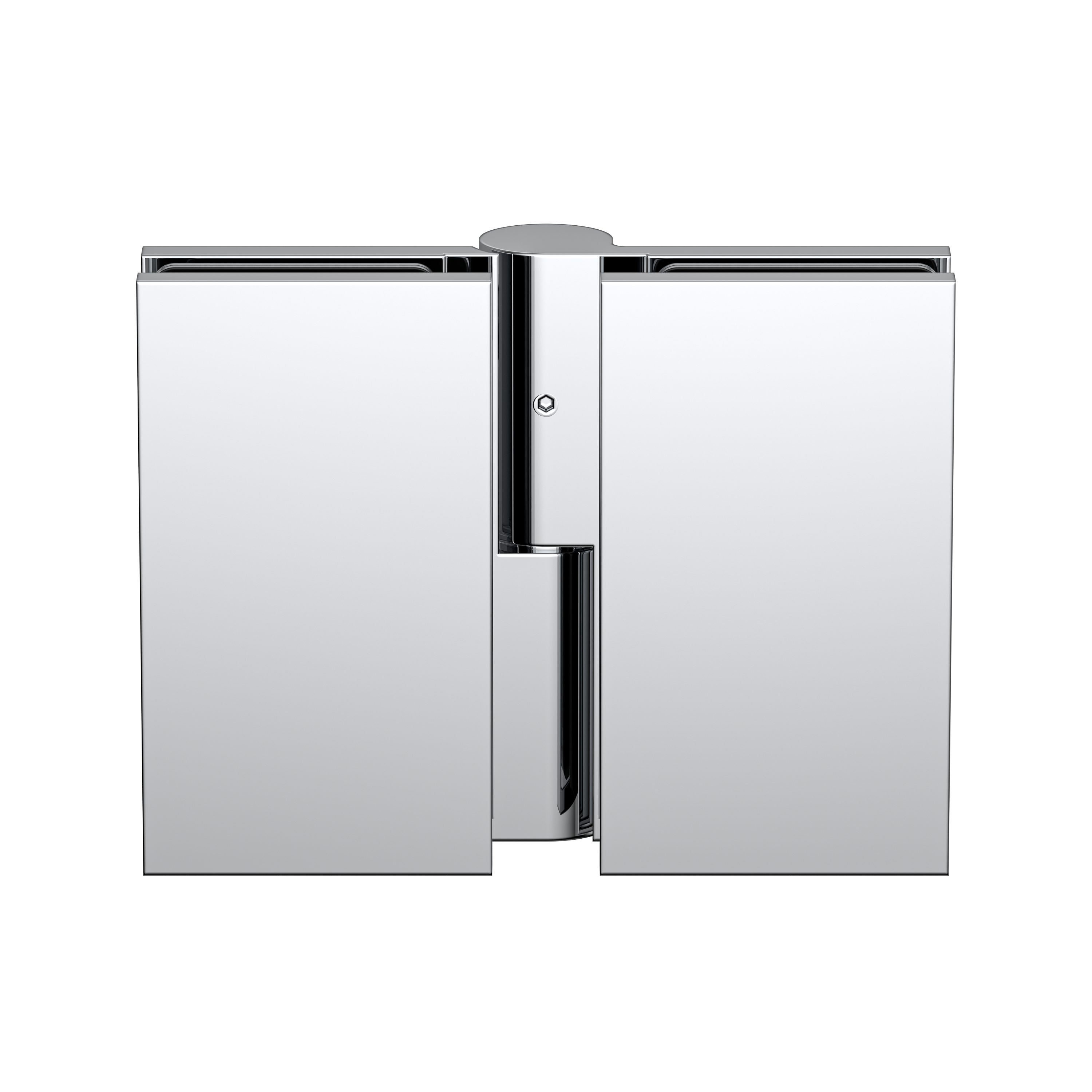

Heavy Duty – Glass to Glass 180 or 135 degree BIFOLD hinges

Item Details

Manufacturer: Estelle (Patent No. 2007101194)
Description: Heavy Duty - Glass to Glass 180 or 135 degree bifold hinges
Material: Estelle specified forged Brass
Load Rating: 40kg per pair. Max glass width not to exceed 800mm
Glass Suitability: 10mm thickness, toughened safety glass

Features

• Lift off hinges are Left and Right hand specific. Be sure to order Left or Right hand based on your application
• Fast fit lift off design for ease of installation
• Dual angle settings of 180 degree and 135 degree. (sold set at 180 degrees)
• Patented Angle stop will not allow the hinge to pass the set angle, eliminating the risk of glass to glass contact
• Single action only - Swing in - or - swing out (when reverse fitted)
• Non-slip POWERGRAB ® asbestos free packers

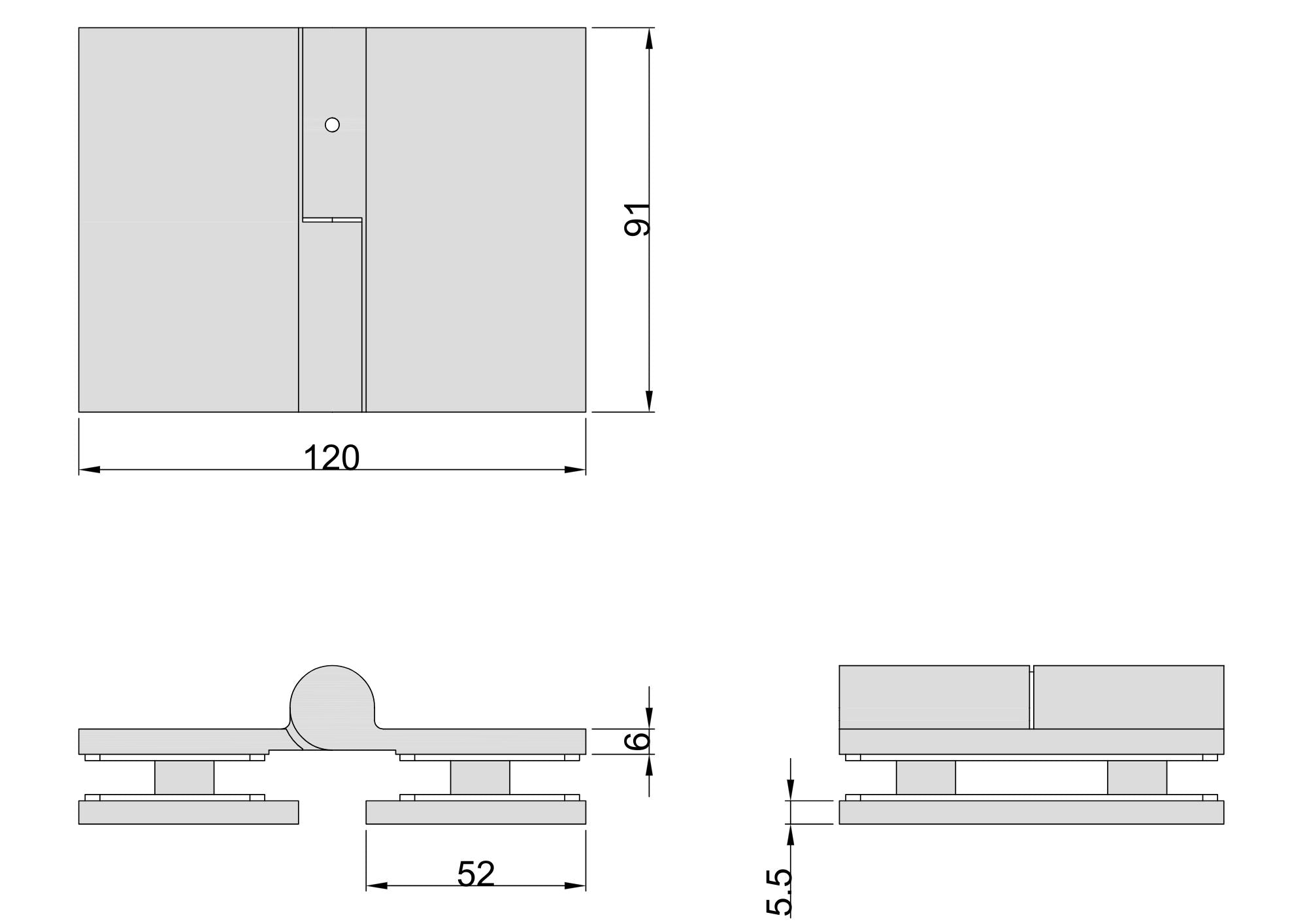

TECHNICAL DATA
