SKU: FH10-1C PC

FH10-1C

Sale price$82.05

Colour: Polished Chrome

Heavy Duty – Wall to glass hinges with CORNER type mounting plate

Item Details

Manufacturer: Estelle
Description: Heavy Duty - Wall to glass hinges with corner type mounting plate
Material: Estelle specified forged Brass
Load Rating: 40kg per pair. Max glass width not to exceed 800mm
Glass Suitability: 10mm thickness, toughened safety glass

Features
  • Non-slip POWERGRAB ® asbestos free packers
  • Fast fit slip on design
  • Self Closing from approximately 25 degrees
  • Dual action opens inwards and outwards
  • Fixing screws, wall plugs, Allan tools and masonry drill bit supplied
  • Guaranteed for life
Fitting Instructions
  • Before attempting installation ensure the wall is strong enough to hold the required weight
  • Before attaching the hinge clean both sides of the glass with Methylated spirits at contact points

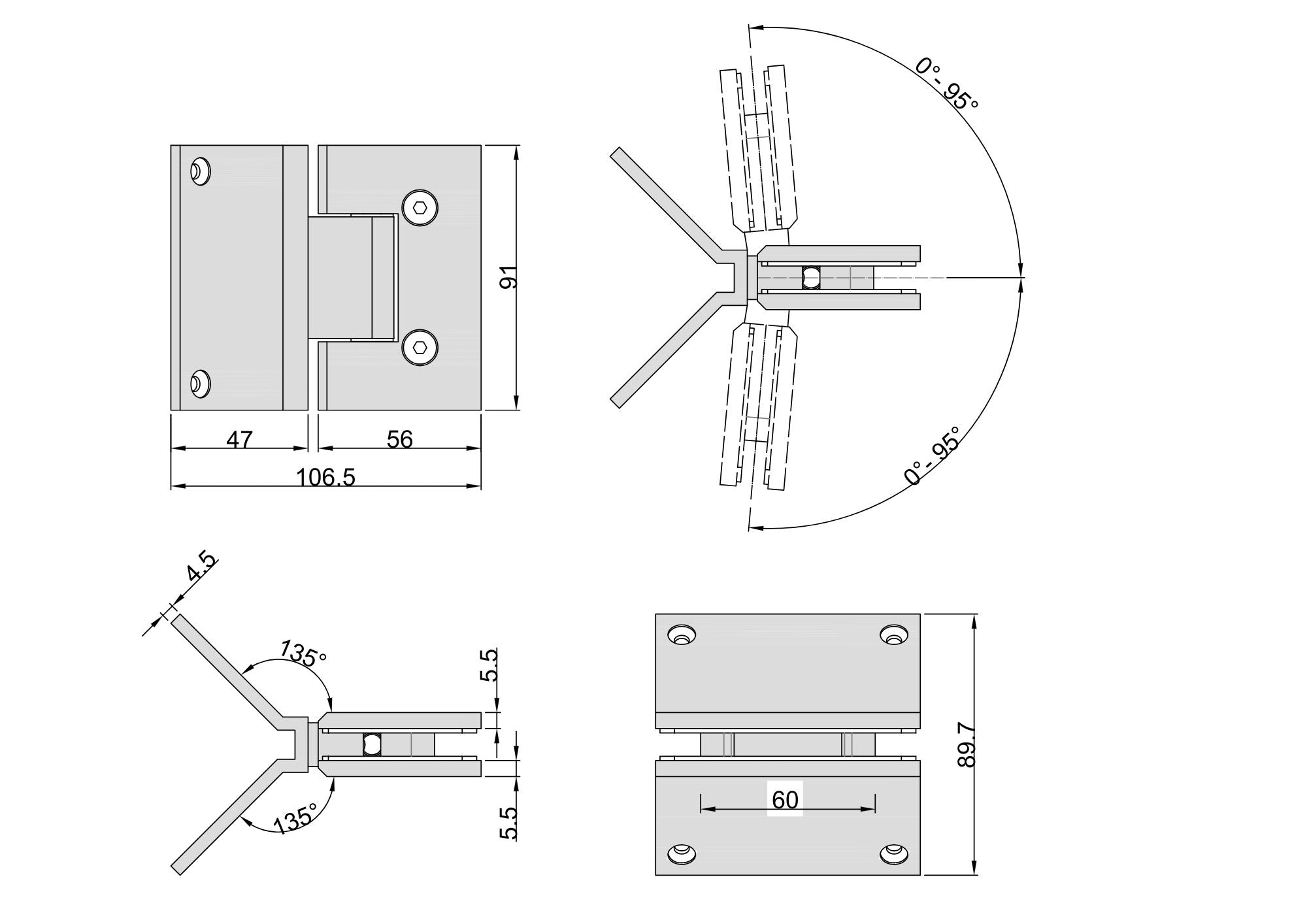

TECHNICAL DATA

Unsure which series suits you best?

Refer to our comparison chart to see the differences between the series Estelle offers.
