FH10-180

ITEM DETAILS

Manufacturer: Estelle

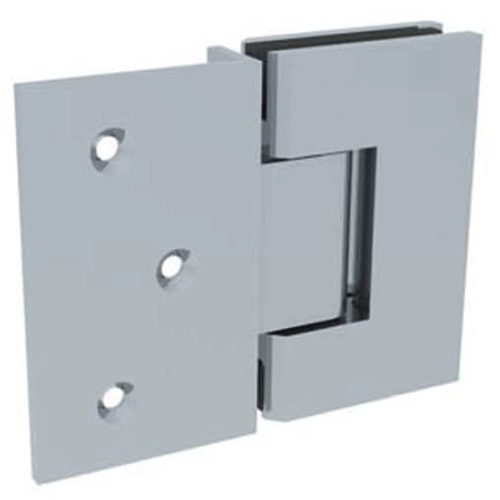

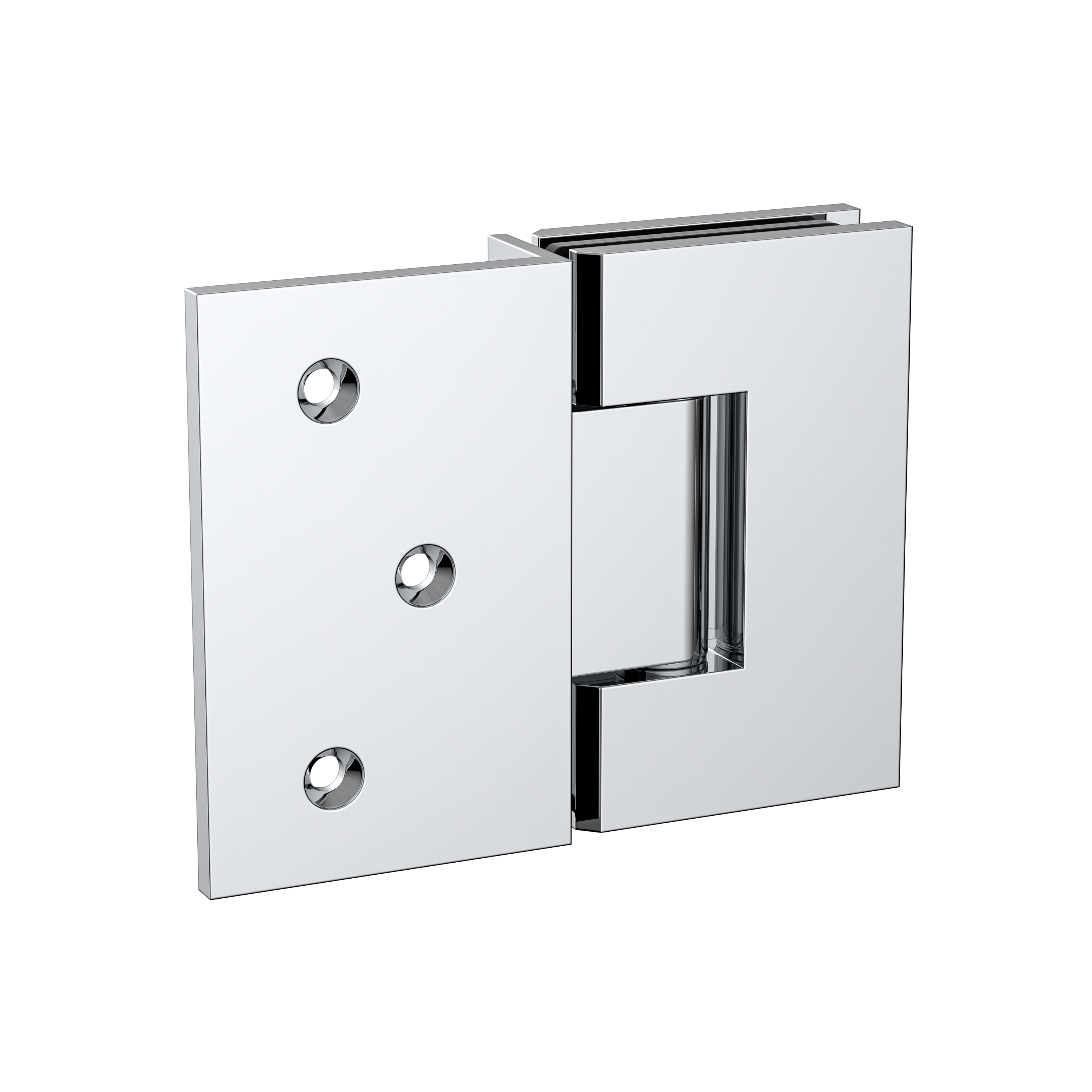

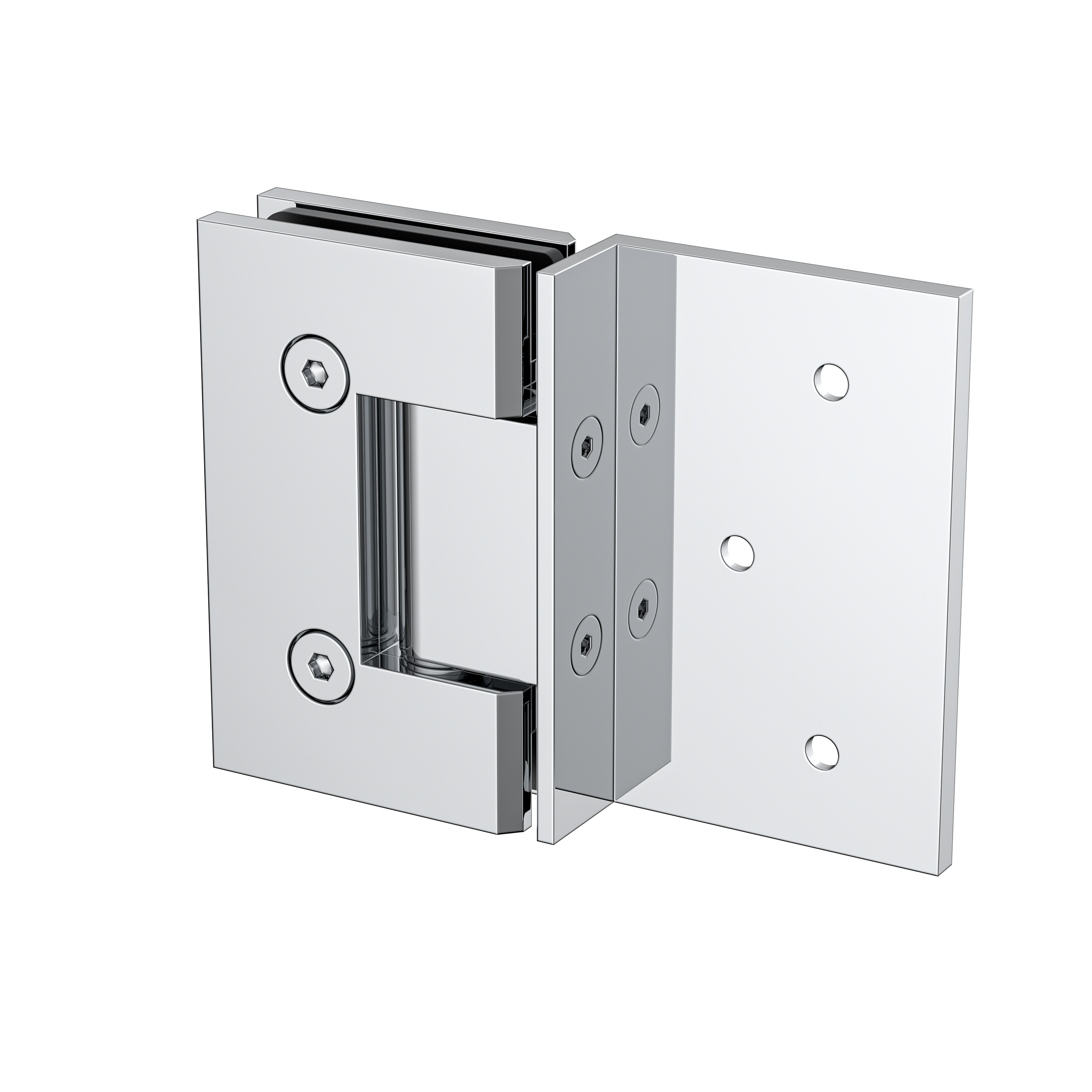

Description: Heavy Duty – Wall to glass hinges with 180 degree type mounting plate
Material: Estelle specified forged Brass
Load Rating: 40kg per pair. Max glass width not to exceed 800mm
Glass Suitability: 10mm thickness, toughened safety glass

FEATURES

• Non-slip POWERGRAB ® asbestos free packers
• Fast fit slip on design
• Self Closing from approximately 25 degrees
• Dual action opens inwards and outwards
• Fixing screws, wall plugs, Allan tools and masonry drill bit supplied
• Guaranteed for life

FITTING INSTRUCTIONS

• Before attempting installation ensure the wall is strong enough to hold the required weight
• Before attaching the hinge clean both sides of the glass with Methylated spirits at contact points

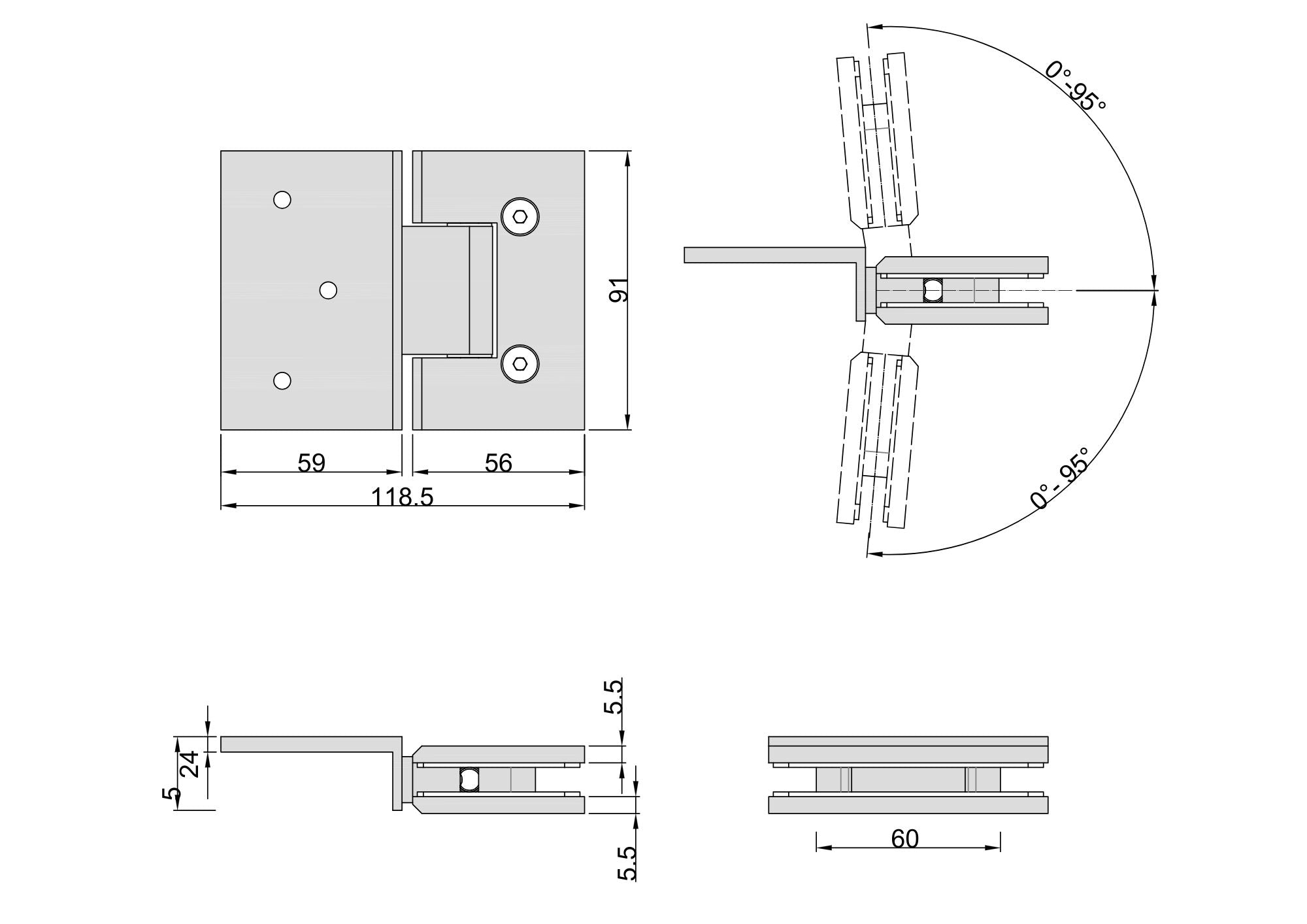

TECHNICAL DATA
