EFH6-5L
COVERED FIXINGS Petite Glass to Glass 90 degree BIFOLD hinges
Item Details
Manufacturer: Estelle (Patent No. 2011101671)

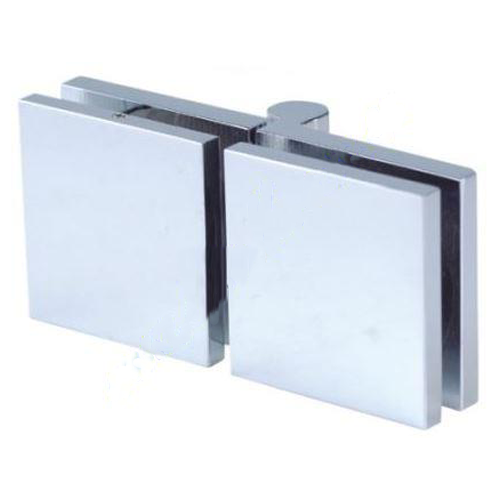

Description: COVERED FIXINGS - Petite Glass to Glass 90 degree bifold hinges
Material: Estelle specified forged Brass
Load Rating: 28kg per pair. Max glass width not to exceed 700mm
Glass Suitability: 6mm, 8mm and 10mm thickness, toughened safety glass
Features
- Patented Covers hide all screws and fixings
- Lift off hinges are Left and Right hand specific. Be sure to order Left or Right hand based on your application
- Boston Style Fast fit lift off design for ease of installation
- Patented Angle stop will not allow the hinge to pass the set angle, eliminating the risk of glass to glass contact
- Single action only - Swing in - or - swing out (when reverse fitted)
- Non-slip POWERGRAB asbestos free packers

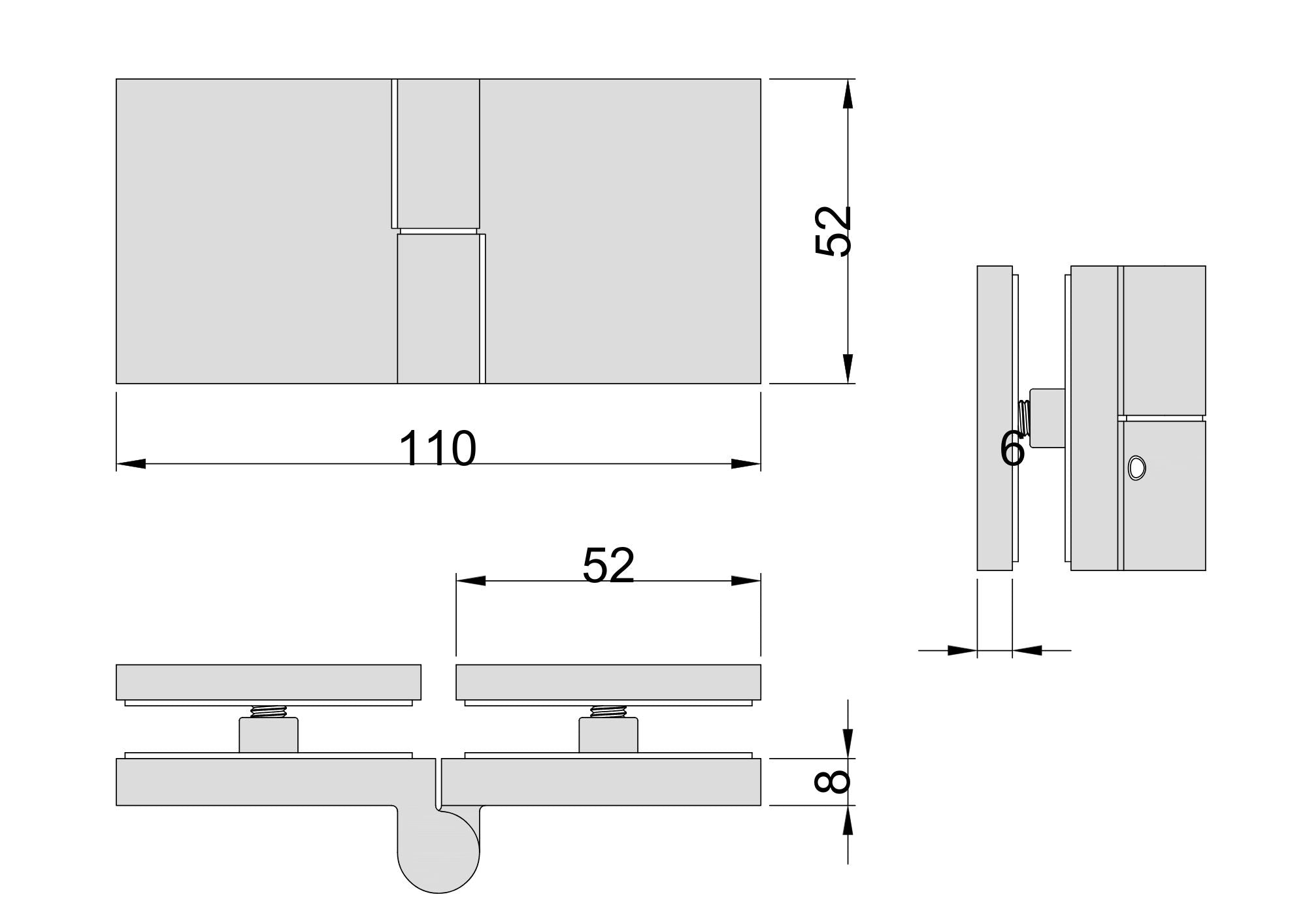

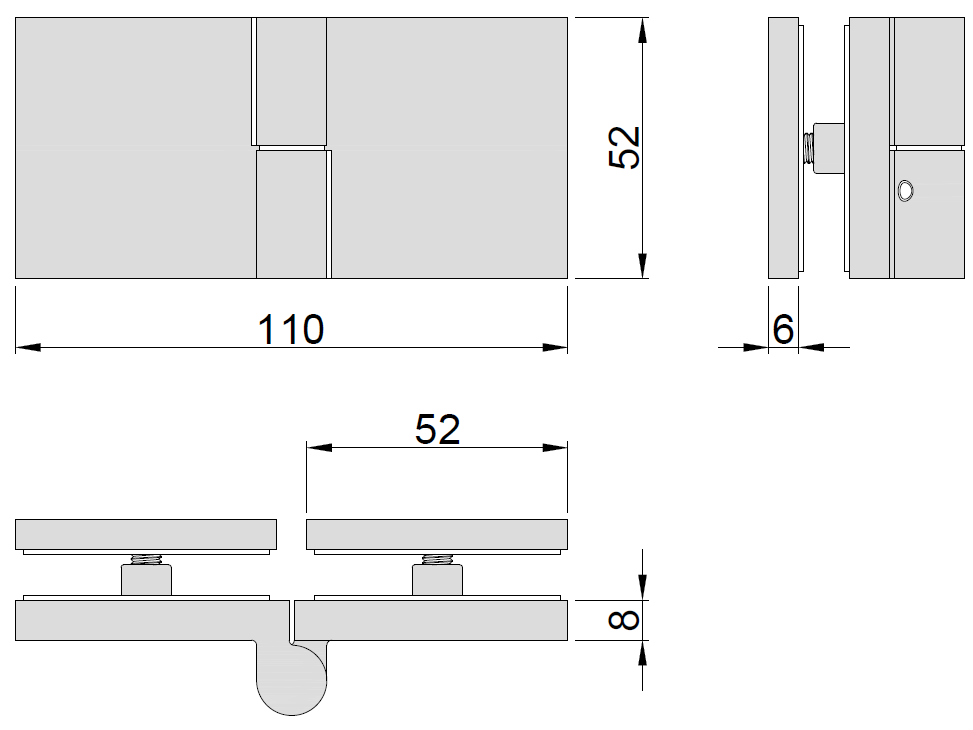

TECHNICAL DIAGRAM
EFH6-5L
Sale price$66.31
Regular price$73.68 (/)
